• Auxiliary pwr point in instrument panel
• Color-keyed headliner
• Dual instrument-panel-mounted cupholders
• Securilock anti-theft ignition
• Voltmeter, oil pressure/temp/speedometer/fuel gauges

• 3400# capacity twin forged SLA front axle
• 3800# capacity rear axle
• 4-pin trailer tow wiring
• 58 amp-hour (540 CCA) maintenance-free battery w/battery-saver feature
• Front coil/rear leaf spring suspension
• Full-size spare tire
• Gas-Pressurized Shock Absorbers
• Pwr front disc/rear drum brakes
• Pwr steering
• Rear wheel drive
• Underframe, crank-type spare tire carrier

• Driver & front passenger air bags w/passenger-side deactivation switch
• Seat belts
• Side door intrusion beams

4.6L EFI OHC V8 "TRITON" ENGINE

• fail-safe cooling system
• 130 amp alternator

• 3.55 Axle Ratio
• Payload Package #1
• Speed Control w/Tilt Steering Wheel
• Rear Folding Seat
• SecuriLock
• Air Conditioning
• Front beverage holders
• Variably intermittent wipers
• Split folding rear seat
• Rear step bumper
• Power steering
• Passenger cancellable airbag
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• AM/FM radio
• ABS brakes
• Voltmeter

• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 20.6
• Total Cooling System Capacity (qts): 20.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2800
• Gross Axle Wt Rating - Front (lbs): 2650
• Gross Axle Wt Rating - Rear (lbs): 3200
• Curb Weight - Front (lbs): 2391
• Curb Weight - Rear (lbs): 1825
• Gross Vehicle Weight Rating Cap (lbs): 6000
• Gross Combined Wt Rating (lbs): 6,500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 4000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2800
• Spring Capacity - Front (lbs): 2650
• Spring Capacity - Rear (lbs): 3200
• Axle Type - Front: Twin Forged SLA
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3400
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.13 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.03 x 2.25
• Tires
• Front Tire Order Code: T52
• Rear Tire Order Code: T52
• Spare Tire Order Code: T52
• Front Tire Size: P235/70R16SL
• Rear Tire Size: P235/70R16SL
• Spare Tire Size: P235/70R16SL
• Front Tire Capacity (lbs): 1804
• Rear Tire Capacity (lbs): 1804
• Spare Tire Capacity (lbs): 1804
• Revolutions/Mile @ 45 mph - Front: 719
• Revolutions/Mile @ 45 mph - Rear: 719
• Revolutions/Mile @ 45 mph - Spare: 719
• Wheels
• Front Wheel Size (in): 16.0 x 7.0
• Rear Wheel Size (in): 16.0 x 7.0
• Spare Wheel Size (in): 16.0 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 14
• Turning Diameter - Curb to Curb (ft): 45.9
• Turning Diameter - Wall to Wall (ft): 47.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 138.5
• Length, Overall w/o rear bumper (in): 224.2
• Width, Max w/o mirrors (in): 78.4
• Height, Overall (in): 72.8
• Overhang, Front (in): 37.2
• Overhang, Rear w/o bumper (in): 48.5
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 32.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 62.1 @ Belt
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.7
• Tailgate Width (in): 62.1
• Cargo Volume (ft³): 58.6
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 63.8
• Front Hip Room (in): 61.3
• Second Head Room (in): 37.8
• Second Leg Room (in): 32.2
• Second Shoulder Room (in): 64.7
• Second Hip Room (in): 64.9
• Summary

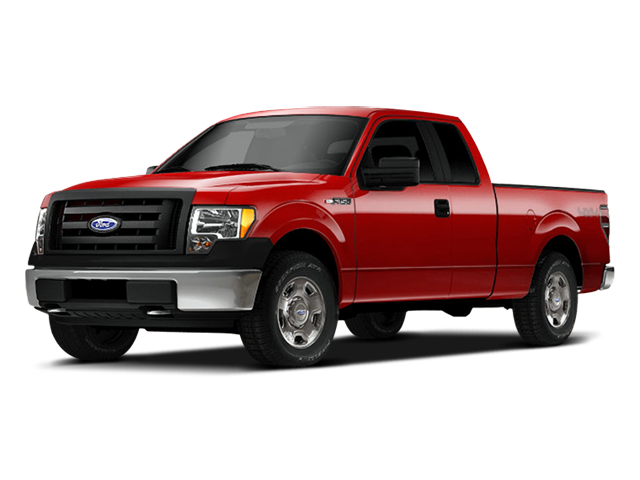

• Vehicle Name: Ford F-150 Work Series
• Body Style: Supercab 6.5' Styleside
• Body Code: 138.5" WB
